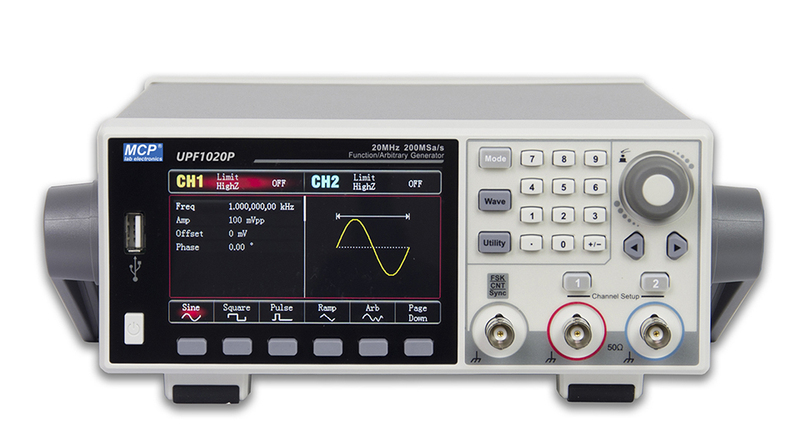

UPF1000 SEIRES DDS FUNCTION GENERATOR

UPF1000 SEIRES DDS FUNCTION GENERATOR

share
  • Products Details


UPF 1000 SERIES

DDS FUNCTION GENERATOR


Feastures:

. Two channels with the maximum frequency output 40 MHZ, the maximum output

amplitude 20Vpp.200 MSa/s sampling rate and 16-bit vertical resolution

. Square wave with the maximum frequency 20 MHz,low jtter

. Multiple analog and digital modulation function: AM, FM, PM, ASK, FSK, PSK and PWM

. Supporting sweep frequency and pulse string output

. Arbitrary wave can generate by the anywaveform editor

. Built-in power pre-amplifier. the maximum power output 4W (only for-PA model)

. 7-bit hard frequency meter.Built-in 200 arbitrary waves

. Standard USB Host and USB Device

. 4.3-inch high resolution TFT LCD




Technical DataUPF1020/UPF1020PUPF1040UPF1060
Output Characteristic
Channels
222
Sampling rate
200 MSa/s
Vertical resolution
16 bits
Waveform characteristic
6 standard waveforms, 200 built-in arbitrary waveforms
Waveform
Sine, Square, Ramp, Pulse, Noise, DC, Arb
Modulation types
AM, FM, PM, ASK, FSK, PSK, PWM, Sweep, Burst
Working modes
Output gating. Continuous, Modulation, Frequency Sweep, Burst
Output frequency

Sine: 1uHz to 20 MHz

Square: 1uHz to 10 MHz

Pulse: 1uHz to 10 MHz

Ramp: 1uHz to 400 kHz

Arb: 1uHz to 5 MHz

Sine: 1uHz to 40 MHz

Square: 1uHz to 20 MHz

Pulse: 1uHz to 20 MHz

Ramp: 1uHz to 1MHz

Arb: 1uHz to 10 MHz

Sine: 1uHz to 60 MHz

Square: 1uHz to 20 MHz

Pulse: 1uHz to 20 MHz

Ramp: 1uHz to 1MHz

Arb: 1uHz to 10 MHz

Output amplitude (50Ω)
≤20 MHz: 1 mVpp to 10 Vpp,   ≤40 MHz :1 mVpp to 5 Vpp
Output amplitude (HighZ)
≤20 MHz: 2 mVpp to 20 Vpp,   ≤40 MHz: 2 mVpp to 10 Vpp
Accuracy

Typical value (1kHz,sine wave, 0V, deviation, >10 mVpp)

± (1% off set value + 2 mVpp)

Amplitude flatness
Typical value (sine wave, 0dBm)   ≤20 MHz: ±0.3 dB,   ≤40 MHz: ±0.5 dB
Gauss noise
40 MHz (-3dB) (typical value)
Resolution
1μHz
Reference frequency

Initial accuracy: ≤30 ppm

Temperature stability: ±2ppm/ ℃,0℃ to 40℃

Aging rate: ±50 ppm, First year aging rate

DC offset range
±5V(50Ω)    ±10V(high resistance)     Peak(AC+DC)
DC offset accuracy
Offset set value±1%±amplitude set value 2%±2mV
Power output (UPF1020P only)
Frequency:1 μHz to 100 kHz    Output power: 4W
DC offset range
±5V(50Ω)    ±10V(high resistance)     Peak(AC+DC)
DC offset accuracy
Offset set value ±1% ±amplitude set value 2% ±2mV
Impedance
50Ω typical value
Protection
Overvoltage protection, overload automatically disables waveform output
Waveform feature
Sine waveHarmonic distortion(0dB)DC to 1 MHz: -60 dBc
1 MHz to 10 MHz: -55 dBc
10 MHz to 40 MHz: -50 dBc
THD<0.2% (DC to 20 kHz,1Vpp)
Spurious signals (anharmonic)≤10 MHz<-70 dBc
Typical value (0 dBm)>10 MHz<-70 dBc+6 dB/octave
Phase noise (typical)1MHz: ≤-125dBc/Hz (typical, 0 dBm,10kHz deviation)
Square waveRise/fall time(1Vpp, 50Ω)≤16ns

Overshoot

(100kHz, 1Vpp, 50Ω)

≤2% (typical, 50Ω)
Duty ratio0.000% to 100.00% (limited by current frequency)
Symmetry (duty ratio=50%)1% of period + 4ns
Shake(RMS)≤5MHz: 2ppm+200 ps
Typical (1 MHz,1 Vpp, 50Ω)>5MHz: 200 ps
Ramp waveNonlinearity≤1% of peak output (typical value, 1kHz, 1Vpp, symmetry 100%)
Symmetry0.0% to 100.0%
Pulse waveMinimum pulse width22ns
Variable edge15ns to 10s
Overshoot<2% (typical, 1 Vpp)
Shake150 ps
Arbitrary waveWave length4kpts
Vertical resolution16-bit (symbol included)
Sampling rage200 MSa/s (DDS)
Nonvolatile storage200 waves
Modulation
AMCarrier waveSine wave, square wave, ramp wave, arbitrary wave
SourceInternal
Modulation waveSine wave, square wave, rampwave, noise, arbitrary wave
Modulation depth0% to 120%
Modulation frequency2mHz to 1 MHz
FMCarrier waveSine wave, square wave, ramp wave, arbitrary wave
SourceInternal
Modulation waveSine wave, square wave, rampwave, noise, arbitrary wave
Frequency deviationDC to 10 MHzDC to 20 MHzDC to 30 MHz
Modulation frequency2mHz to 1 MHz
PMCarrier waveSine wave, square wave, ramp wave, arbitrary wave
SourceInternal
Modulation waveSine wave, square wave, rampwave, noise, arbitrary wave
Phase deviation0 to 360°
Modulation frequency2 mHz to 1 MHz
ASKCarrier waveSine wave, square wave, ramp wave, arbitrary wave
SourceInternal / external
Modulation waveSquare wave (Duty ratio 50%)
Modulation frequency2 mHz to 100 KHz
FSKCarrier waveSine wave, square wave, ramp wave, arbitrary wave
SourceInternal / external
Modulation waveSquare wave (Duty ratio 50%)
Modulation frequency2 mHz to 100 KHz
PSKCarrier waveSine wave, square wave, ramp wave, arbitrary wave
SourceInternal / external
Modulation waveSquare wave (Duty ratio 50%)
Modulation frequency2 mHz to 100 KHz
PWM
Carrier wavePulse
SourceInternal / external
Modulation waveSquare wave (Duty ratio 50%)
PWM range0% to 50.00%
Modulation frequency2 mHz to 1 MHz
Frequency sweepCarrier waveSine wave, square wave, ramp wave, arbitrary wave
TypeLinear or logarithmic
Frequency sweep time1 ms to 500s ± 0.1%
Trigger sourceInternal
BurstMode of pulse trainN cycle, infinite, gated
WaveformSine wave, square wave, ramp wave, pulse, noise and arbitrary wave
SourceInternal / external
Trigger edgeRising edge / falling edge
Internal cycle1 μs to 500 s
Recurring number1 to 50000
PolarityPositive and negative (TTL level input)
Initial and stop phase0 to 360°
Frequency meterRange ofinput frequency100 mHz to 200 MHz
Input levelTTL compatible
Accuracy7 bits
General Technical Specifications
Standard configuration
USB Host, USB Device, Power Output (UPF1020P only)
Display type
4.3 inches TFT LCD
Display resolution
WVGA (480×272)
Supply voltage

100 to 240 VAC (Fluctuations: ±10%), 50 Hz / 60Hz;

100 to 120 VAC (Fluctuations: ±10%), 400 Hz

Power consumption
≤20W
Fuse
2A,Class T,250V
Temperature range
Operation: +10℃ to +40℃      Non operational: -20℃ to +60℃
Cooling method
Natural cooling
Humidity range

+35℃ Below: ≤90% relative humidity

+35℃ to +40℃: ≤60% relative humidity

Altitude
Operating below 2,000 m Non-operating below 15,000m
Class of pollution
2
Operating environment
indoor
Dimensions
215mm×103mm×316mm (DxHxW)
Net weight
2.2kg
Calibration cycle
The recommended calibration circle is one year
