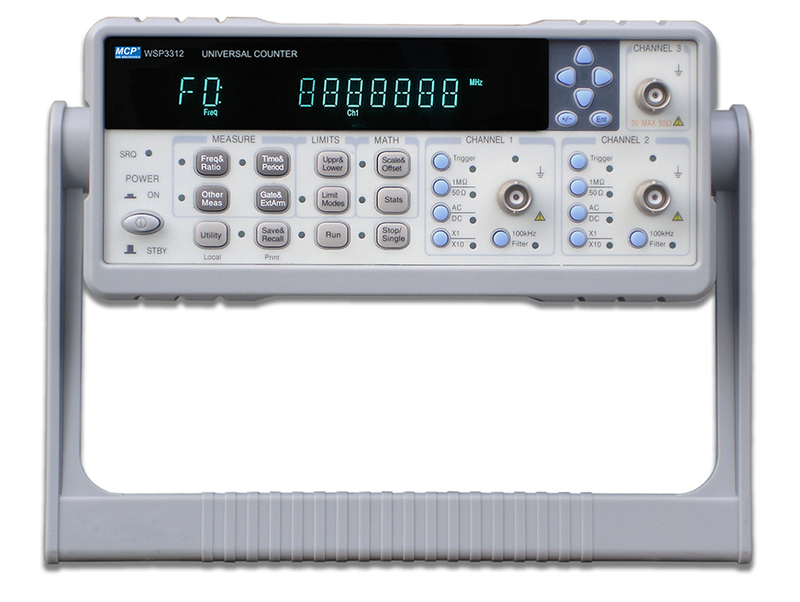

WSP3312
UNIVERSAL COUNTER
Features
.Apply high performance AVR CPU, LSI andCPLD device high reliability
.Single time interval and single pulse width measurement
.Automatic extreme calculate and mathematical statistics for frequency measurement, include mean, maximum, minimum, delta, absolute deviation, relative deviatio(PPM), stand deviation, Allan variance
.Average measurement function for the accuracy increasing of time interval, pulse width, phase, duty cycle
.Set time gate totalizing and manual operation totalizing
.Current value automatically stored, zero data loss
.Save up to 9 different measurement setups
.USB, RS232 and centronics printer interface
.VFD display, appearance graceful, compact, and operation comfortable
| Technical Data | |
| Function | Measure frequency, time interval , period, frequency ratio, totalize, pulse width, duty cycle, phase , self-calibrate and etc. |
| Measure frequency range | 0.14mHz~50MHz/100MHz(Channel A & Channel B) |
| Channel C | 100MHz~500MHz(WSP3312 I) 100MHz~1.5GHz(WSP3312 II) 100MHz~2.5GHz (WSP3312 III) 100MHz~3GHz (WSP3312 IV) |
| Input voltage | 30mVrms ~ 1.5Vrms (100MHz below) 50mVrms ~ 1.5Vrms (100MHz ~ 1.5GHz) 30mVrms ~ 1Vrms (1.5GHz ~ 3GHz) |
| Period range | 20ns/10ns ~ 7000s, 20ns resolution |
| Time interval range | 40ns ~ 7000s, 20ns resolution |
| Phase range | 0 ~ 359° |
| PW range | ≥20ns,( cycle＜100s) |
| Duty cycle range | 1 ~ 99%,( cycle＜100s) |
| Measure accuracy | ±2× 10 -8 /Gate time (s) |
| Frequency resolution | 7.5 digits/Gate time (s) |
| Totalize capacity | 1 × 10 12 |
| Couple mode | Channel A, B: AC / DC Channel C: AC |
| Input impedance | 1MΩ / 45pF or 50Ω |
| Time base stability | 10MHz, ≤±1 × 10 -8 /d |
| Power supply | 110 ~ 127VAC ±10%/220 ~ 240VAC ±10%, 50Hz ±2Hz/60Hz ±2Hz |
| Dimensions (W×H×D) | 255 × 100 × 370mm |
| Weight | 3kg |
