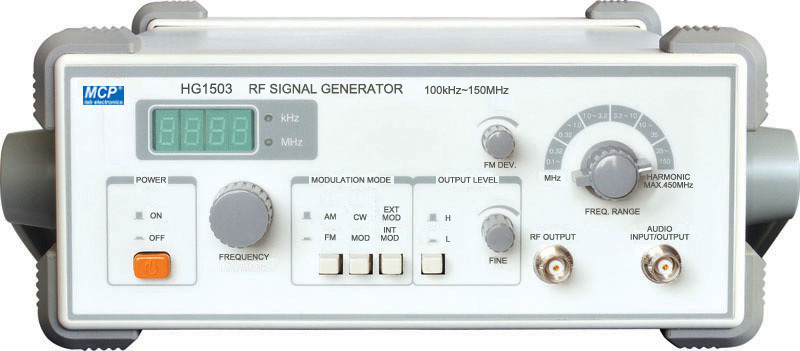

HG1503
RF SIGNAL GENERATOR

Feature

.Frequency cover 100kHz～150MHz, harmonic up to 450MHz

.Output level continuously adjustable

.AM and FM function

.Four digits output frequency display

.High amplitude stability with output ALC

.Microprocessor control, multiple functions, easy to use

.Compact and high reliability, MTBF≧3000 hour

Technical Data

Output frequency: 100Hz~150MHz(450MHz), 6 ranges

Output amplitude: 0~60mVrms, 2 ranges

Output impedance: 50Ω

Modulation: AM and FM

Int. modulation: 1kHz

Ext. modulation: 50Hz~20kHz

Audio signal output: >1.5Vrms, 1kHz, sine(<3% distortion)

Power source: 110~127VAC±10%/220~240VAC±10%,50Hz±2Hz/60Hz±2Hz

Dimension(WxHxD): 295x110x280

Weight: 3kg
